Microscopy Measurement l RBC, WBC, Epithelial Cells, Clue Cells, Trichomonas Vaginalis, Bacteria, Fungus, Cleanliness,Bacterial Density and Diversity, Dominant Bacteria, Pathogenic Microorganisms, Nugent score, AV score, etc. Chemistry Measurement l pH：An important indicator reflecting the micro-ecologicalbalance of vaginal.l H2O2：Used to assess the quantity of dominant lactobacillus for maintaining vaginal micro-ecological balance. l Leukocyte Esterase（LE）：Inflammatory response markerreflecting the quantity of WBC in vaginal secretions. l Alkaline Phosphatase（ALP）：Positive results indicate vaginal inflammation. l Neuraminidase（SNa）：Secreted by gardnerella vaginalis and some anaerobic bacteria.It’san indicator of pathogenic bacteria, positive results indicate bacterial vaginosis. l β-Glucuronidase（β-G）：An enzyme secreted by aerobic bacteria, positive results indicate aerobic vaginitis. l Proline Aminopeptidase（PLD）：Positive results indicate colpomycosis or anaerobic vaginitis. l Acetylglucosaminidase（NAG）：An specific enzyme secreted by fungi and trichomoniasis, together with reference to pH, fungal vaginitis（pH<4.5）and trichomonas vaginitis（pH>5.0）can be indicated. l Coagulase（CG）：An enzyme synthesized and secreted by aerobic bacteria,of which positive results indicate aerobic vaginitis.
|

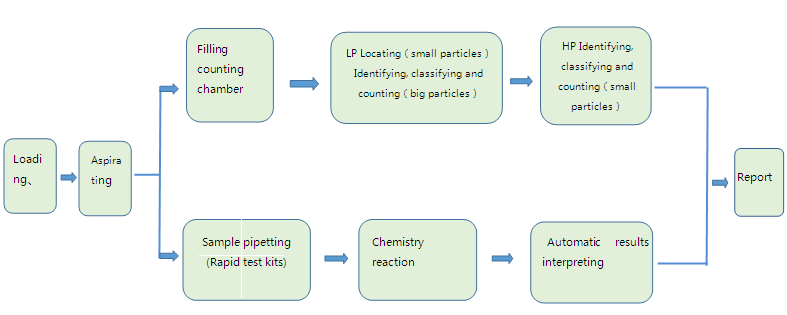

ü Microscopy Measurement: Machine Vision Technology is applied to scan and capture full-view field images of formed elements in secretionssamples, and thenidentify, classifyand count them automatically. ü Chemistry Measurement: Images of colorations from rapid test kits reacted with samples are captured and automatically interpreted.
|
Integrated l Unique design of integration, chemistry measurement and microscopy measurement can be done by one stop sampling with easier operation and more precise results. Multifunctional
l Measurement modes optional: chemistry or microscopy alone or chemistry and microscopy together More results
l Chemistry and Microscopy measurements done together makescomprehensive score of vaginal micro-ecological environment, improvesthe rate of clinical diagnosis, confirm the type of vaginitis by one stop and guide the clinical treatments.
Chemistry Measurement l Automatic incubation and results interpretation effectively avoid the possibility of human interference. l Flexibleoptions of rapid test kits in accordance with clinical purpose. Microscopy Measurementl Full-view field scanning and automated locating under LP, and automated tracking, identifying, classifying and counting of particles under HP to increase positive detection rate l Comprehensive report with both full-view field and segmented images, on-screen verification of suspicious particles and no manual microscopic review required. l Accuracy of automatic identification can be continuously improved by software upgrading.
|
l Throughput: ≥120 tests/h
l Detection rate: ≥90% for sample at concentration of 5 cells/µl
l Accuracy: For microscopy measurement -≥95%
l For chemistry measurement –Testing results and the reference solution are within 1 tolerance level;no false positive and false negative.
l Repeatability:
For microscopy measurement:
|
concentration（cells/μl） |
50 |
200 |
|
（CV%） |
≤25% |
≤15% |
For chemistry measurement: CV≤1%
l Carryover: formicroscopy measurement- at concentration of 5000cells/ul:≤1cells/µl
l for chemistry measurement- cross test of negative and positive reference solution, no false positive
l Report: comprehensive report showing both images and diagrams, with microscopy images,morphological analysis results, chemistry resultsl Sampler:Loading capacity of 60 samples in racks
l STAT: available
l Result storage:≥1,000,000 results
l Printer:External laser
l Interfaces:Bidirectional data transmission with LIS/HIS
l Network function:connectable to the networks of laboratory and hospital to realize paperless transmission of reports
